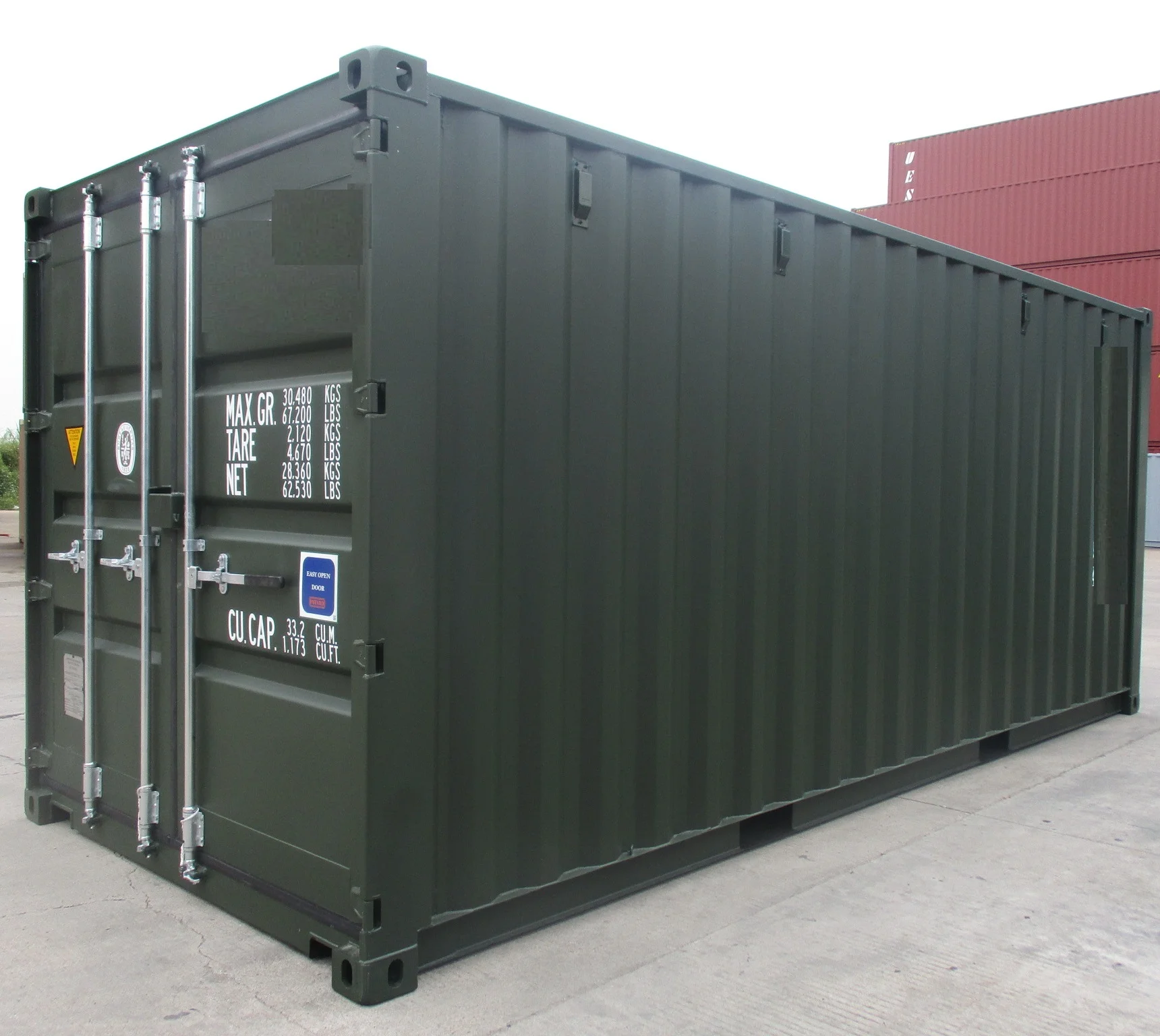

Technical Specifications – 20′ Shipping Container
✅ Construction
The container is constructed using high-strength steel frames and corrugated steel panels, welded by MAG (Metal Active Gas) arc welding with continuous, full-penetration welds across all exterior seams, including the base frame. Welding seams are free from porosity or visible imperfections, ensuring maximum structural integrity.
✅ Floor
The floor consists of 28 mm thick plywood or OSB, secured to steel cross members with self-tapping screws. All joints and the perimeter are sealed with waterborne sealant for moisture protection.
✅ Corner Fittings
All corner fittings are ISO 1161-compliant, ensuring compatibility with lifting and stacking equipment.
✅ Coating System
Finished with a 4.2 waterborne base paint system, providing long-lasting protection against environmental factors.
✅ External Dimensions
- Length: 6,058 mm
- Width: 2,438 mm
- Height: 2,591 mm
✅ Internal Dimensions
- Length: 5,898 mm
- Width: 2,352 mm
- Height: 2,393 mm
✅ Door Opening
- Width: 2,340 mm
- Height: 2,280 mm
✅ Capacity and Load Rating
- Internal Volume: 33.2 m³
- Max. Gross Weight: 30,480 kg
- Max. Payload: 28,330 kg
- Tare Weight (±2%): 2,150 kg
ℹ️ Disclaimer: Actual dimensions and features may vary slightly. Only the specifications confirmed in the final offer are binding.
