1. Container Frame

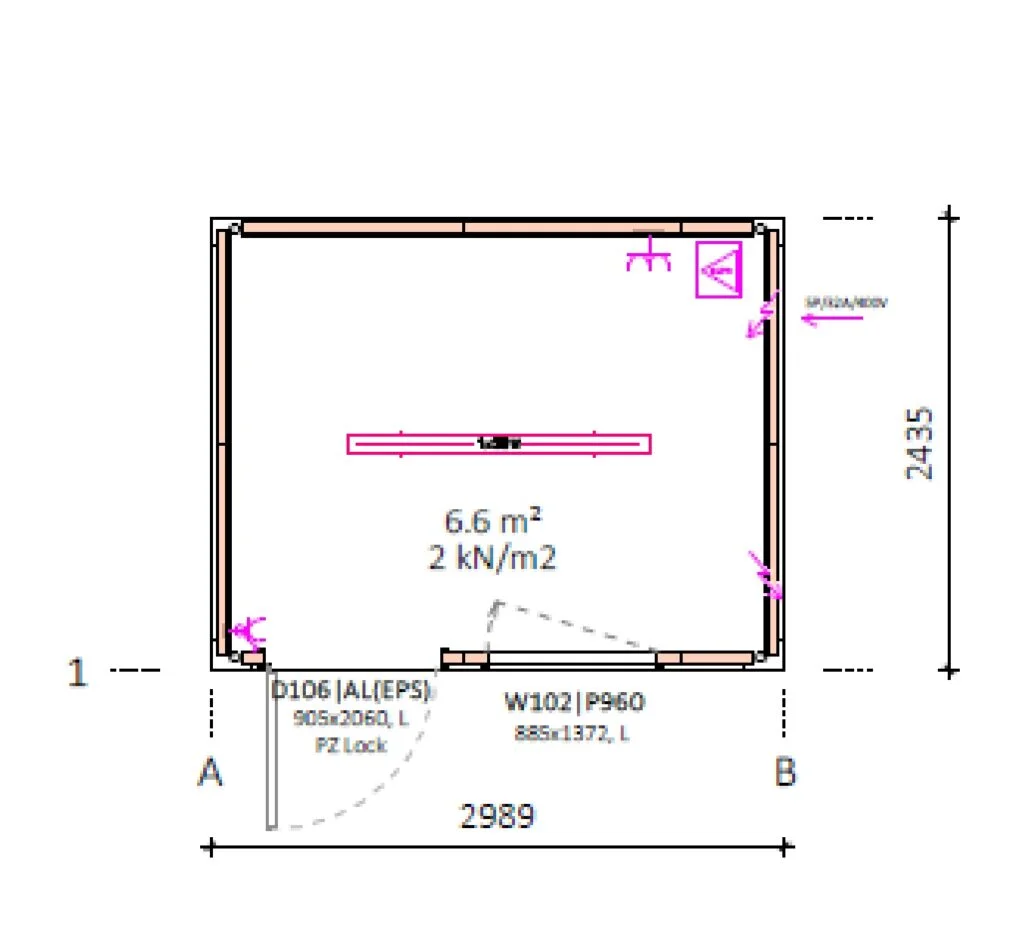

Frame Coating: Steel frame (2435 × 2989 mm) painted to ISO 12944-2 C3M standard, offering 7–15 years of corrosion protection.
Floor Structure: Welded steel base frame (H = 120 mm), fitted with 20 mm OSB or wood cement board.
Floor Finish: Antistatic PVC floor covering, 1.5 mm thick, designed for durability and easy cleaning.
Insulation: 100 mm mineral wool insulation (DF 40), with a U-value of 0.35 W/m²K.
Ceiling Frame: Steel ceiling structure (H = 200 mm) with chipboard or steel sheet covering (10 mm).
Ceiling Insulation: 100 mm mineral wool, U-value 0.36 W/m²K.
Corner Posts: Reinforced columns 210 × 152 mm, height 2445 mm, made of S350GD+Z140 steel, 3.0 mm thick.
2. Wall Panels
Sandwich Panels: 8 full and 2 half panels, 60 mm thick, with mineral wool core (DF 40), U-value 0.57 W/m²K.
Surface Finish: Coated in RAL 9002 (light grey) for a clean industrial look.
3. Windows and Glazing
Window Type: Single-leaf PVC window with integrated roller blind.
Size: 885 × 1372 mm.
Thermal Performance: Uw = 1.6 W/m²K.
4. Door
Construction: Single-leaf door with EPS core and aluminum-clad steel face.
Size: 905 × 2060 mm.
Thermal Performance: U-value = 1.8 W/m²K.
For Panel Thickness: 60–90 mm.
5. Electrical Installation
Distribution Box: Surface-mounted, single-row, 12-module, IP30 protection.
Power Inlet: PCE socket and plug, 32A/400V, 5P, IP44.
Wiring: Recessed cable runs in ceiling profile.
Lighting: 1 × IP66 fluorescent light fitting, 1 × wall switch.
Outlets: 1 × single socket, 1 × double socket, IP20, 230V.
