1. Container Frame

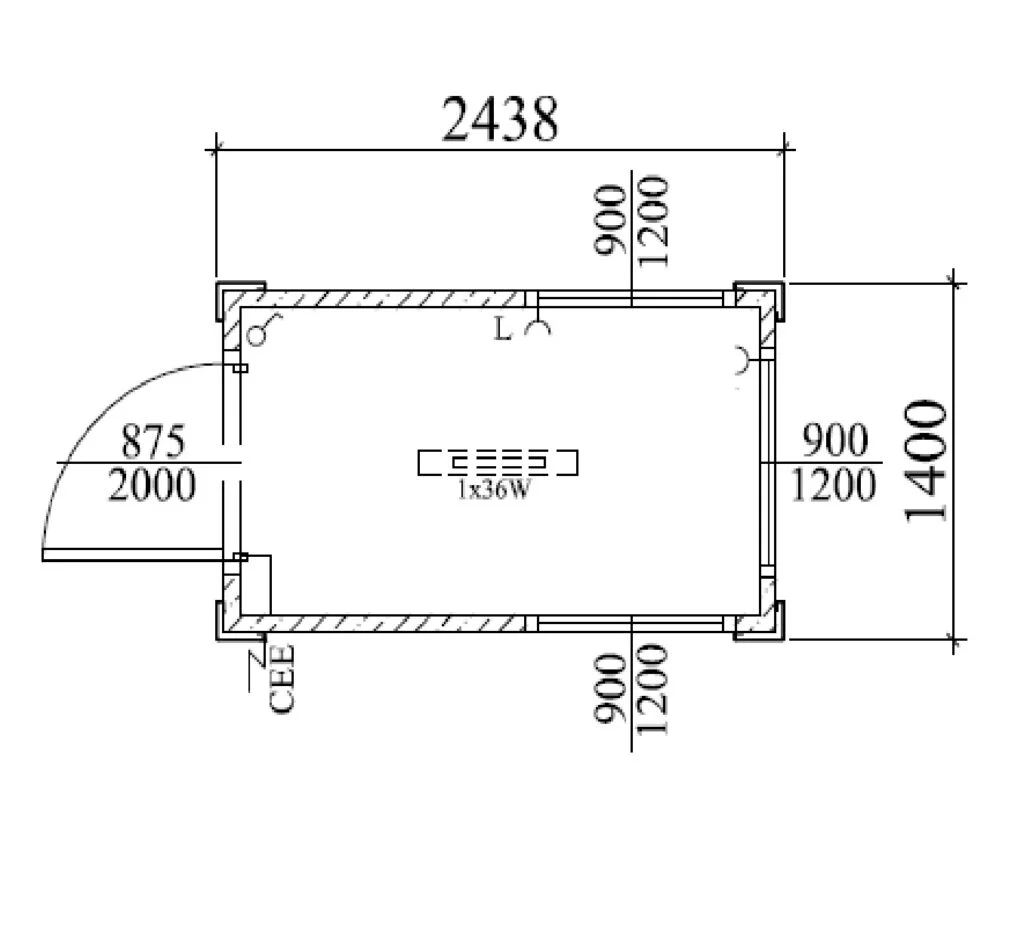

- Frame Dimensions: 2438 × 1400 mm, height 120 mm, steel construction painted in C3M class (ISO 12944-2), protection lifespan 7–15 years.
- Floor Structure:
- Wooden chipboard panel, 20 mm thickness.
- Floor insulation: DF 40 mineral wool, 100 mm thickness, U-value: 0.35 W/m²K.
- PVC floor covering: antistatic, 1.5 mm thickness.
- Ceiling Structure:
- Ceiling frame: 2438 × 1400 mm, height 200 mm.
- Covering: 10 mm chipboard.
- Ceiling insulation: DF 40 mineral wool, 100 mm thickness, U-value: 0.36 W/m²K.
- Corner Columns: 210 × 152 mm, height 2445 mm, thickness 3.0 mm, S350GD+Z140 steel.
2. Façade Panels
- Standard Wall Panels:
- 4 pcs FTL sandwich panels, 60 mm thickness, DF 40 insulation, U = 0.57 W/m²K, RAL 9002.
- Half Panels:
- 2 pcs FTL half panels, same spec.
3. Windows and Glazing
- 1 × PVC tilt-turn window, 885 × 1372 mm, with exterior roller blind, Uw = 1.6 W/m²K.
- 2 × PVC tilt-turn windows, same dimensions, without roller blind, Uw = 1.6 W/m²K.
4. Door
- 1 × Single-leaf door, aluminum frame with EPS core, dimensions: 905 × 2060 mm, U = 1.8 W/m²K, suitable for 60–90 mm thick walls.
5. Electrical Installation
- Electrical distribution box (surface-mounted), 12-slot, IP30, for dry rooms.
- Industrial power plug and socket (PCE 32A/400V, 5P, IP44).
- Ceiling cable recess for incoming connection.
- Fluorescent luminaire, 1 × 58W, IP66.
- 1 × Light switch (10A/230V, IP20).
- 1 × Single socket (16A/230V, IP20).
- 1 × Double socket (16A/230V, IP20).
