1. Container Frame
Coating: Frame painted in C3M protection class for corrosion resistance (durability 7–15 years), ISO 12944-2.

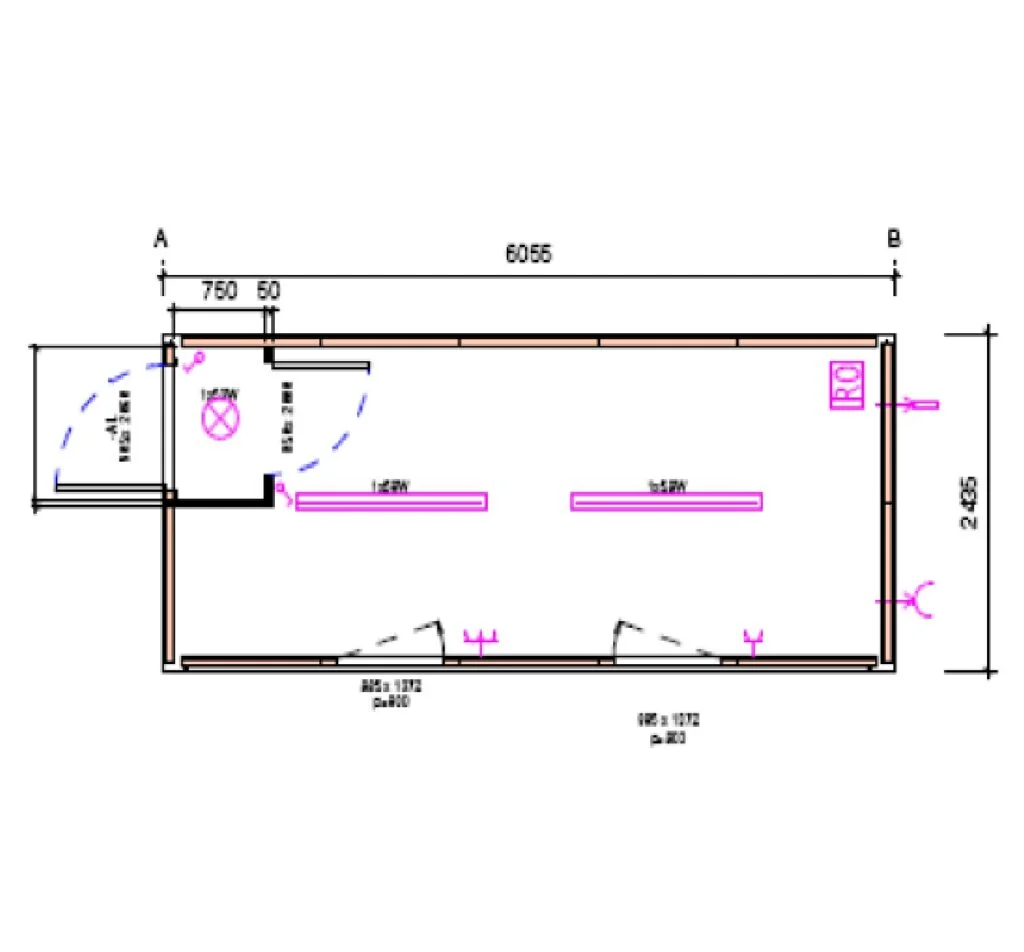

Dimensions: 2435 × 6055 mm
Floor Frame: Height 120 mm, steel construction
Floor Covering: Antistatic PVC, thickness 1.5 mm
Floor Panel: Wood cement board, 20 mm thick
Insulation (Floor): DF 40 mineral wool, 100 mm thick, U-value: 0.35 W/m²K
Ceiling Frame: Height 200 mm
Ceiling Covering: Chipboard, thickness 10 mm
Ceiling Insulation: DF 40 mineral wool, 100 mm thick, U-value: 0.36 W/m²K
Corner Columns: 210 × 152 mm, length 2445 mm, thickness 3.0 mm, material: S350GD+Z140
2. Wall Panels
Full Panels: FTL sandwich panels, 60 mm thick, length 2465 mm, U-value: 0.57 W/m²K, RAL 9002 – 8 pcs
Half Panels: FTL 60 mm, same specs – 2 pcs
3. Windows and Glazing
Window Type: Single-leaf PVC with roller blind
Size: 885 × 1372 mm
Thermal Transmittance: Uw = 1.6 W/m²K – 1 pc
4. Door
Type: EPS + AL sandwich construction
Size: 905 × 2060 mm
Compatibility: For wall thickness 60–90 mm
U-value: 1.8 W/m²K – 1 pc
5. Electrical Installation
Electrical distribution box, 12-slot, IP30, surface-mounted
PCE socket + plug, 32A / 400V, 5P, IP44
Ceiling recess for connection
Fluorescent luminaires 1 × 58W, IP66 – 2 pcs
Light switch 10A / 230V, IP20 – 1 pc
Single socket outlet 16A / 230V, IP20 – 1 pc
Double socket outlet 16A / 230V, IP20 – 1 pc
